Robotic Positioners

Precision Solutions for Automated Systems

Arraycore Automation offers a versatile range of robot-neutral positioners designed to optimize efficiency and precision in your automated systems. Whether you’re looking for a simple fixed table or advanced multi-axis solutions, our positioners enhance performance across applications. From headstock/tailstock configurations to ferris wheels and floor-mounted transporters, we provide customizable options to meet your unique production needs. Many standard arc welding systems are also available as stand-alone positioners. Explore our lineup to discover reliable solutions for ARC and MH robots and more.

Positioners (robot neutral)

  • Headstock/Tailstock
  • Drop Center
  • Drop Axis (Sky Hook)
  • “Z” axis lift option
  • Floor mount robot transporters for ARC and MH robots
  • Standard arc welding systems listed above avaliable as positioners only
  • Opposing 2-Station
  • Fixed Table
  • Fixed Trunnion
  • H-Frame Turntable
  • Round Turntable
  • Ferris Wheel
CMS3 System (center mount servo 3-axis h-frame turntable)

CMS3 Twin positioner (center mount servo 3-axis h-frame turntable positioner)

  • Single load unload positioner
  • 3-meter tool length
  • 1.5-meter tool swing diameter
  • 1.365-kilogram weight capacity per station
Headstock tailstock positioner

Headstock tailstock positioner

  • 3-meter tool length

  • 1.5-meter tool swing diameter

  • 2272-kilogram weight capacity per station

Servo Transport

Servo Transporter

  • 2-meter and 4-meter track sections
  • Floor mount configuration
  • ARC and MH robots
AC-P3 Positioner

AC-P3 Positioner

  • Rear mount pneumatic 3-axis h-frame turntable positioner
  • Single load unload positioner
  • 72” tool length
  • 40” tool swing diameter
  • 750-pounds weight capacity per station

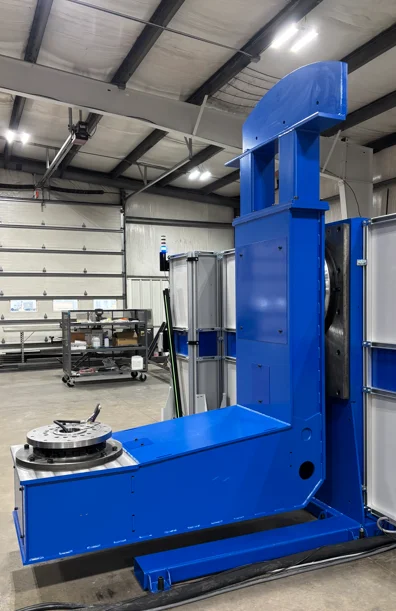

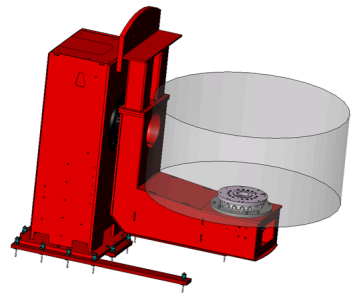

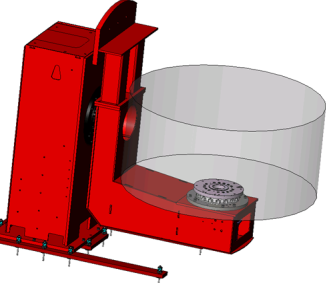

Drop axis positioner

Drop axis positioner

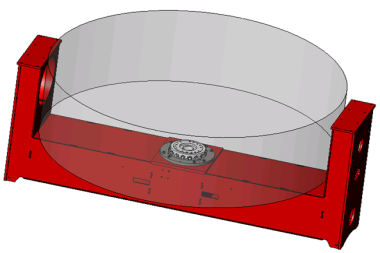

Drop center positioner

Drop center positioner

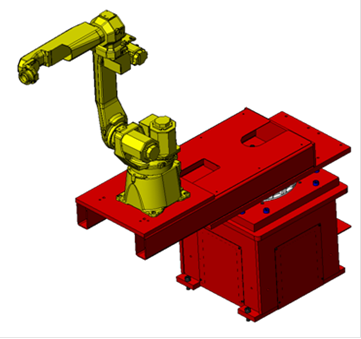

Mini Boom positioner

Mini Boom positioner
